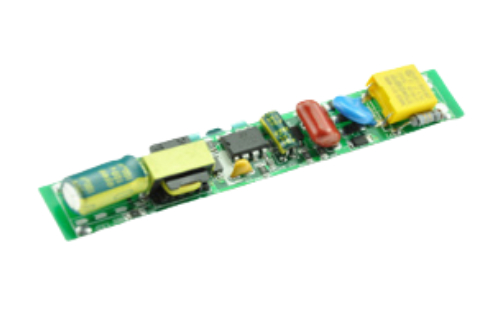

60W-90W CEM1 DRIVER


d2 (1)

ODY-402-R02


Features
  • Output voltage & Current of driver - 36V-50V/50V-60V/1.1A-1.8A
  • Input voltage range -140V-290V
  • Over Voltage Trip - Above 290V
  • Environmental conditions - 10°C to +55°C
  • Total Harmonic Distortion (THD) - < 10%
  • Power Factor (PF) - > 0.95
  • Driver dimensions, enclosure & construction - 103mm x 68mm
  • Insulation resistance - Measured at 500V
  • High Voltage Capacity (HV) - 1.5KV
  • Over Voltage Protection(440V ) - For 2Hrs.
  • Short circuit protection - YES
  • Surge Protection - At 4KV
  • Reverse polarity protection - YES
  • Isolation Protection Upto 3.75KV
  • Isolated/Non-Isolated - Isolated
